AC Clamp Meter
AC Current Clamp Meter with Broad Operating Temperature Range, Attachable Flexible Sensor, and Drop-

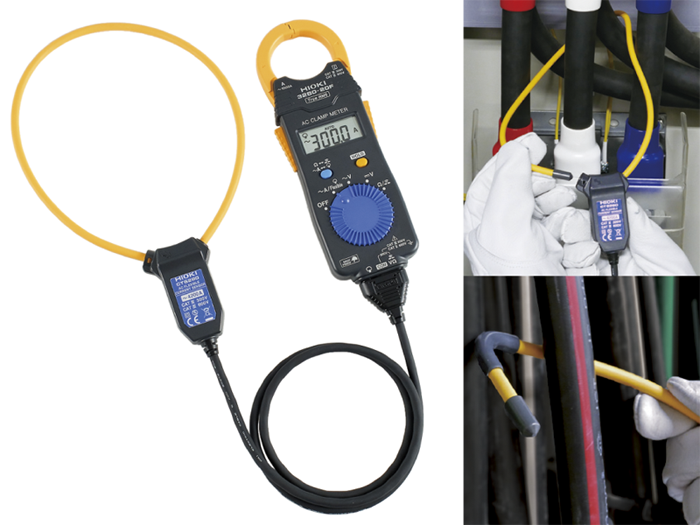

- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or
- Connect the CT6280 flexible sensor to measure up to 4199 A in thick or
- Drop proof design withstands drop from a height of 1 meter
- 제조사
- HIOKI
- 제품명
- AC Clamp Meter
- 제품번호
- 3280-10F
• Measure the fundamental waveform component using the average rectified method
• Expanded -25 °C to 65 °C operating temperature range
• Connect the CT6280 flexible sensor to measure up to 4199 A in thick or paired wires
• Drop proof design withstands drop from a height of 1 meter
• CATIV 300V (Current) CATIII 600V (Current) CATIII 300V (Voltage) CATII 600V (Voltage)
-
3280-10F카탈로그.pdf
- 확장자 :
- 파일크기 :
- 2.26MB
