● Low-frequency AC-IR measurement* enables faster measurement

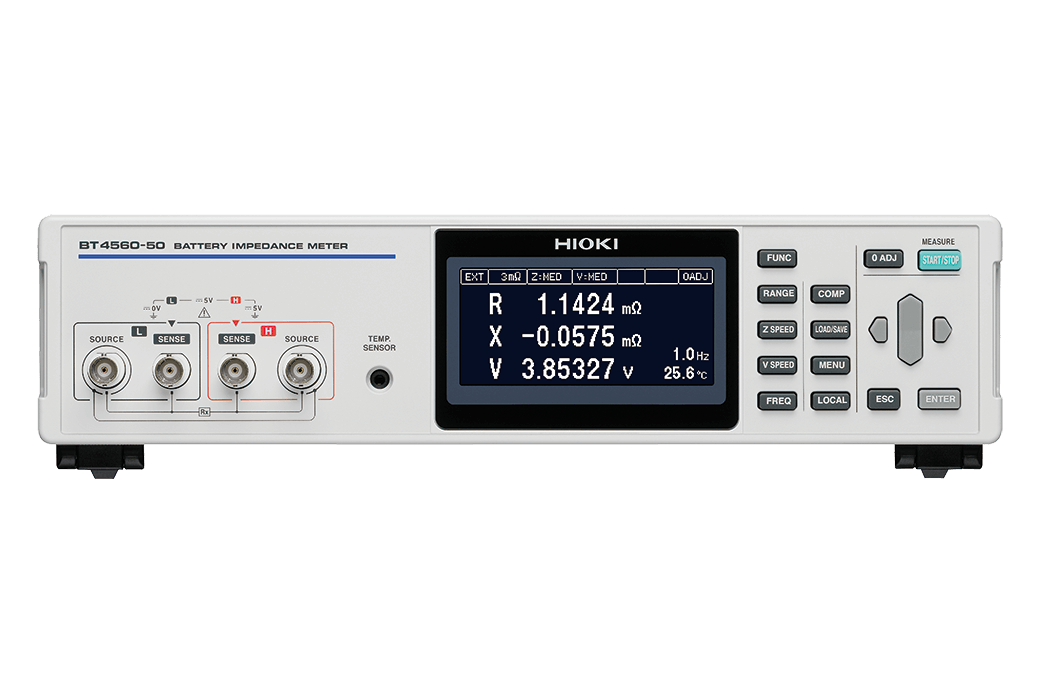

The BT4560 eliminates the need for charging or discharging by measuring internal impedance at a low frequency of 1 Hz or below

● Extremely reliable measurements for low-impedance batteries

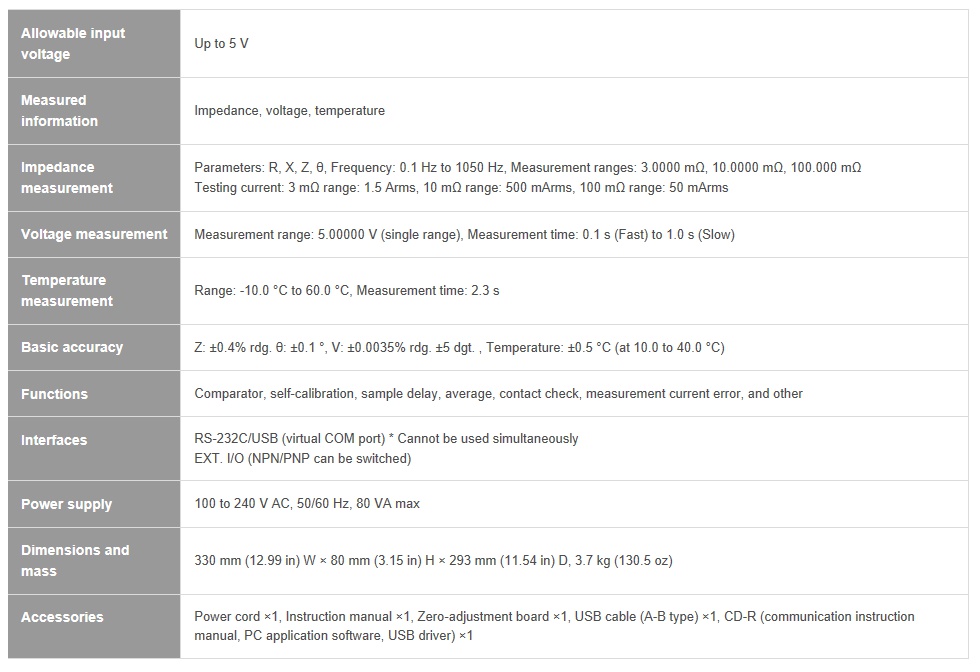

The BT4560 uses a testing current of 1.5 A at the 3mΩ range, which improves the S/N ratio

● Circuit configuration highly tolerant of contact and wire resistance to provide stable measurements

● Simultaneous measurement of impedance and voltage
