AC/DC Clamp on Hitester (단종모델)
20A to 2000A AC/DC Clamp Meter System with Waveform Output Function and Wide 1.00Hz to 1000Hz Bandwi

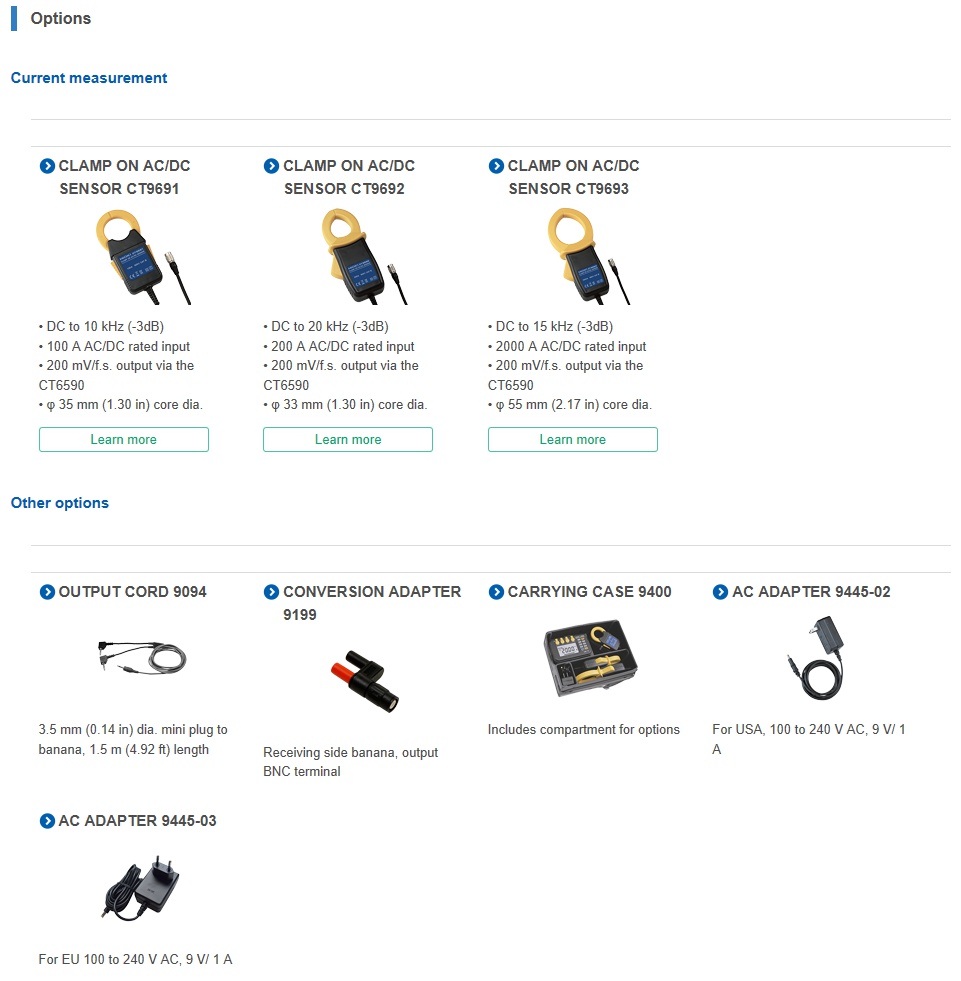

- Choose from three sensors Measure up to 100 A, 200 A, or 2000 A rated
- Correctly measure for inverter current with AC+DC mode and True RMS re
- Choice of response time with three steps
- 제조사
- HIOKI
- 제품명
- AC/DC Clamp on Hitester (단종모델)
- 제품번호
- 3290 (단종모델)
• Choose from three sensors Measure up to 100 A, 200 A, or 2000 A rated current
• Correctly measure for inverter current with AC+DC mode and True RMS rectification
• Choice of output (Simultaneous output): Effective value, waveform, frequency, and integral value output
• Choice of response time with three steps
• Model 3290-10 supports current integration and operating ratio measurements
-
series_Clamps_E6-5XE.pdf
- 확장자 :
- 파일크기 :
- 2.99MB
