HIOKI

IMPEDANCE ANALYZER

4Hz to 5Mz 임피던스 분석기

  • 압전소자,기능성 폴리머 캐패시터,코일 과 변압기등의 임피던스 분석
  • LCR 최대 측정 속도1.5ms(1kHz),0.5ms(100kHz)
  • High basic accuracy of Z parameter: ±0.08%
제조사
HIOKI
제품명
IMPEDANCE ANALYZER

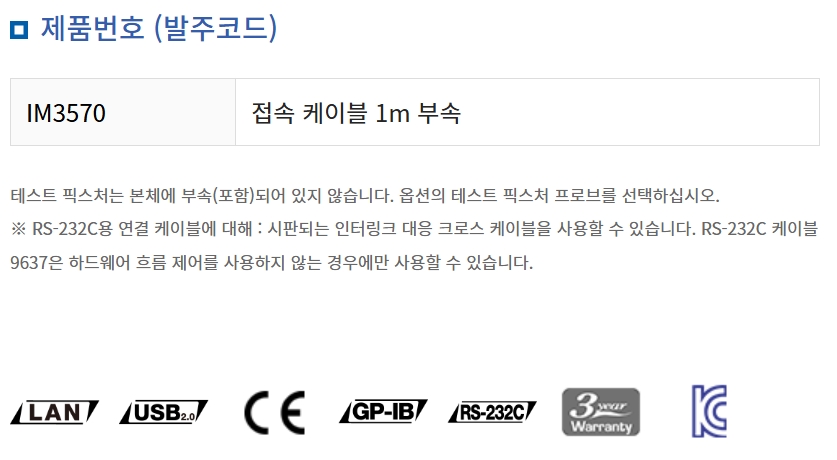

제품번호
IM3570

● 압전소자,기능성 폴리머 캐패시터,코일 과 변압기등의 임피던스 분석

● LCR 최대 측정 속도1.5ms(1kHz),0.5ms(100kHz)

● High basic accuracy of Z parameter: ±0.08%

● LCR, DCR, sweep, and continuous measurement with high-speed testing in a single unit

● Ideal for testing the resonance characteristics of piezoelectric elements, C-D and low ESR measurement of functional polymer capacitors, DCR and L-Q measurement of inductors (coils and transformers)

● Perform frequency sweeps, level sweeps, and time interval measurements in analyzer mode

● Support for high-speed switching of measurement conditions
