Digital Multimeter
Standard Digital Multimeter with Temperature and Clamp Current Testing for HVAC Applications
- ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characte
- Measures large currents with optional clamp on probe (only for DT4251,
- USB communications function supports PC measurements (optional)
- 제조사
- HIOKI
- 제품명
- Digital Multimeter

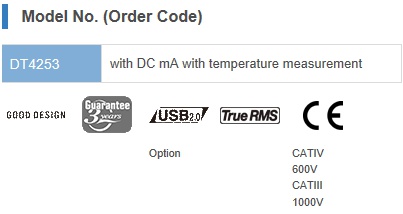

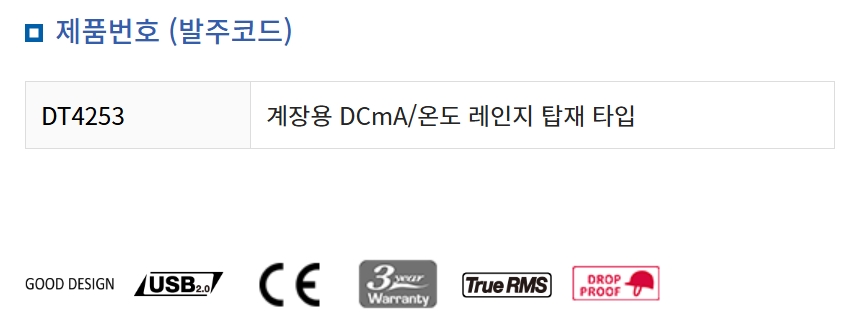

- 제품번호
- DT4253

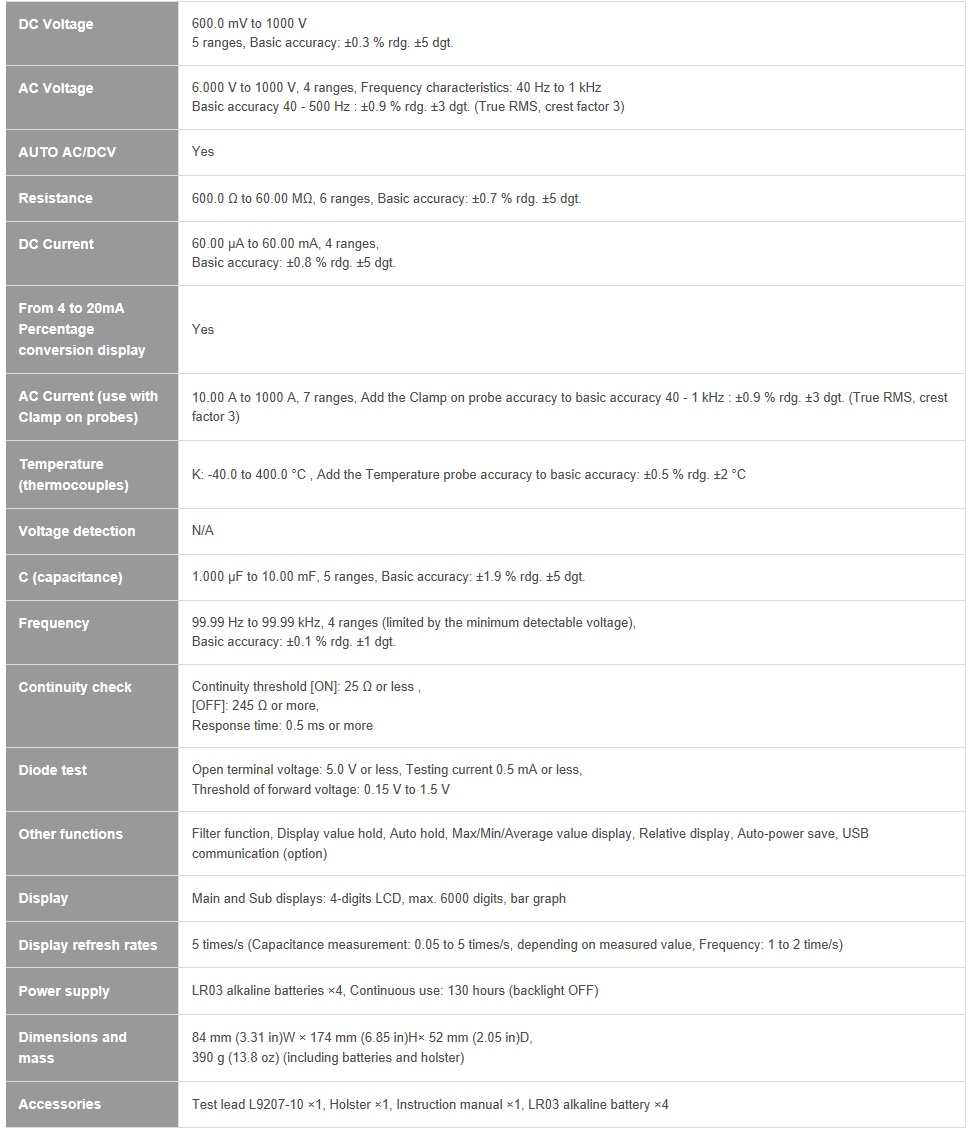

• ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics
• Low-pass filter (100 Hz/ 500 Hz) cuts high harmonics
• Includes multiple measurement functions such as temperature (only for DT4253), capacitance, and frequency
• Measures large currents with optional clamp on probe (only for DT4251,DT4253)
• USB communications function supports PC measurements (optional)
• Broad -10 (14°F) to 50°C (122°F) operating temperature range
-
series_DT4200E7-5XE.pdf
- 확장자 :
- 파일크기 :
- 5.48MB
