AC Grounding Hitester
0 to 1.8 Ω Ground Bond Tester for Electrical Equipment and Large-Scale Electrical Installations
- Easily perform protective continuity testing in compliance with intern
- Ground connectivity testing when installing electrical machine tools a
- Soft-start function that checks the connection to the device under tes
- 제조사
- HIOKI
- 제품명
- AC Grounding Hitester

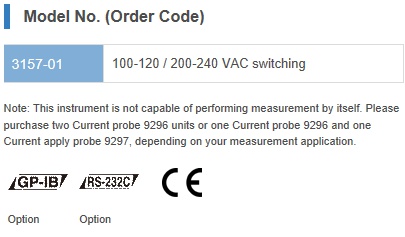

- 제품번호
- 3157
• Easily perform protective continuity testing in compliance with international safety standards and laws
• Protective continuity resistance measurement for medical devices and general electrical devices
• Ground connectivity testing when installing electrical machine tools and distribution panels
• Testing of protective grounding and isopotential grounding work for medical equipment
• Evaluation of contact status using large currents • Feedback control system that is capable of applying a stable current even with a fluctuating load
• Soft-start function that checks the connection to the device under test before applying the current
-
3157E7-46E.pdf
- 확장자 :
- 파일크기 :
- 636KB
