POWER SOURCE UNIT

SM7810 과 연계 32채널 파워 소스 유닛

  • 32-ch, ±1000 V
  • 50 mA per channel output
제조사
HIOKI
제품명
POWER SOURCE UNIT

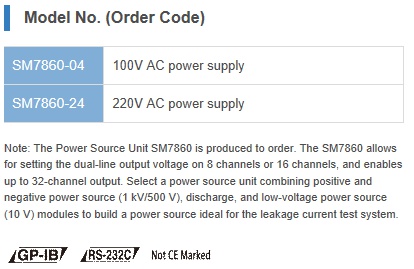

제품번호
SM7860-24

● Support for multi-channel systems up to 32-channel output

● 16-channel dual-line output voltage setting

● Positive and negative polarities required for the MLCC test line included in a single unit

● Output ON/OFF and current limitation can be performed for each channel

● Support for the discharge of the charge capacitor

● Output voltage of 1 kV available

● Large current output of 50 mA*/channel allows for reducing the number of backup charges

* Output voltage of 1 kV is limited to 10 mA/channel
