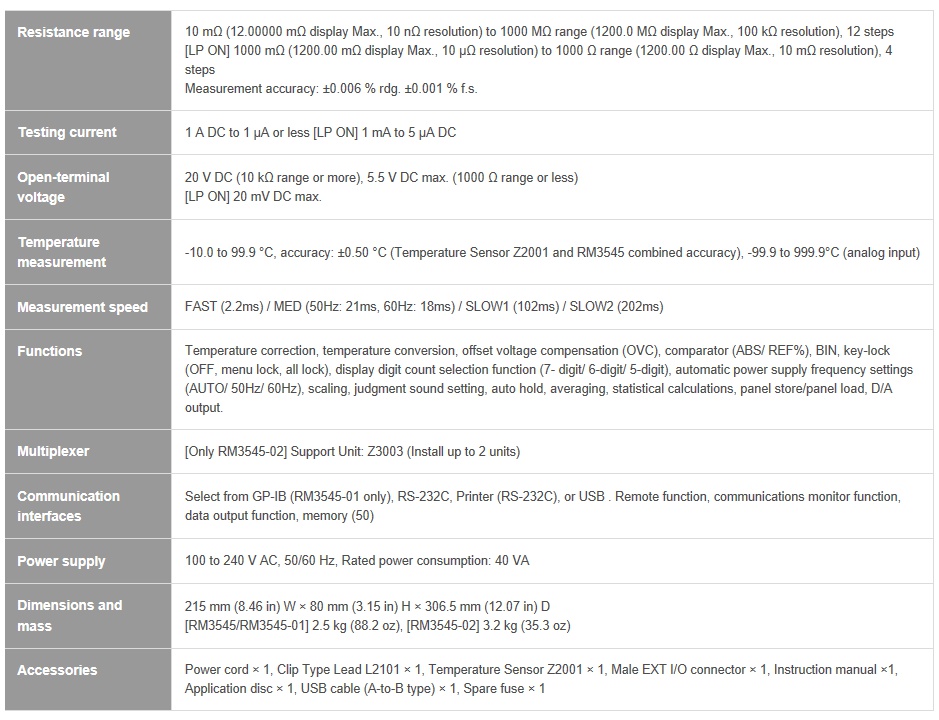

• 0.006% basic accuracy, 0.01 μΩ max. resolution, 1A max. testing current

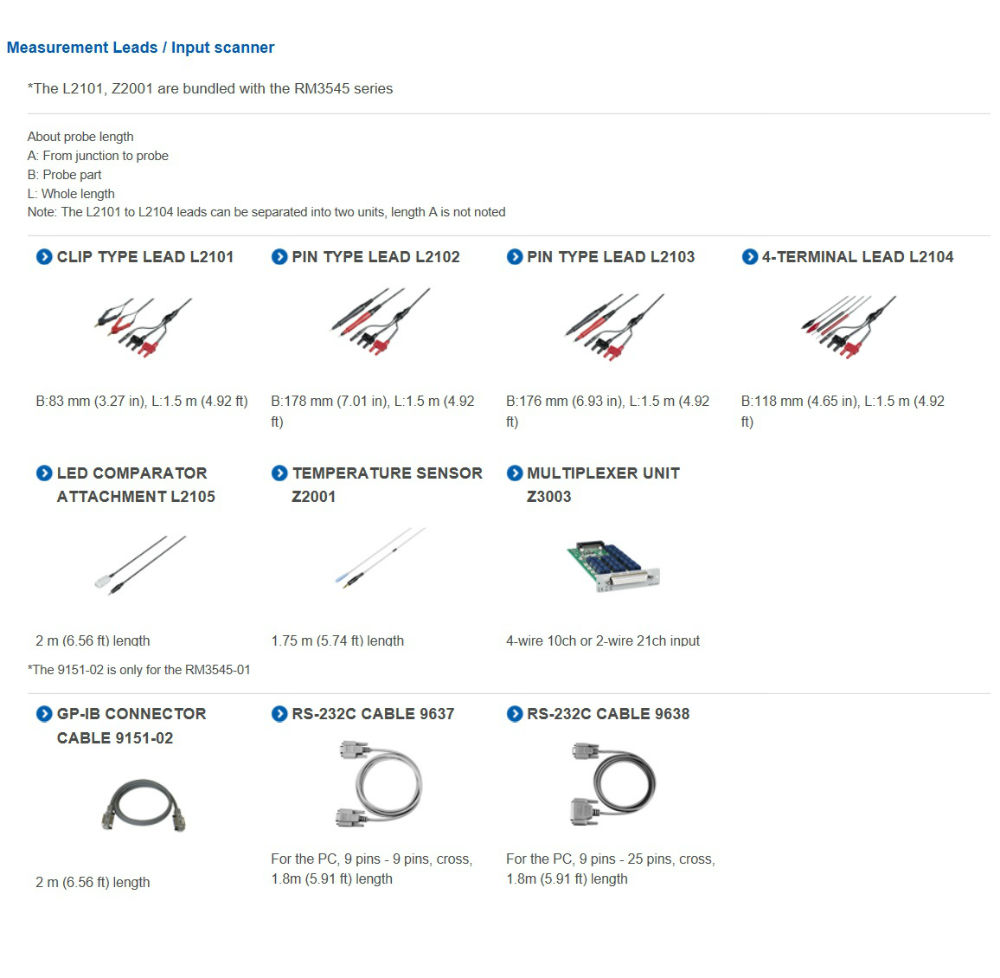

• Measure from 0.00 μΩ (testing current 1 A) to 1200 MΩ • Multiplexer Unit Z3003 (option) provides 20-channels of 4-terminal measurements for a complete assessment of multi-point signals (RM3545-02 only)

• Low-power resistance measurement with an open voltage not exceeding 20 mV

• High-speed, comprehensive productivity support delivers decisions in as little as 2.2 ms from start to finish
