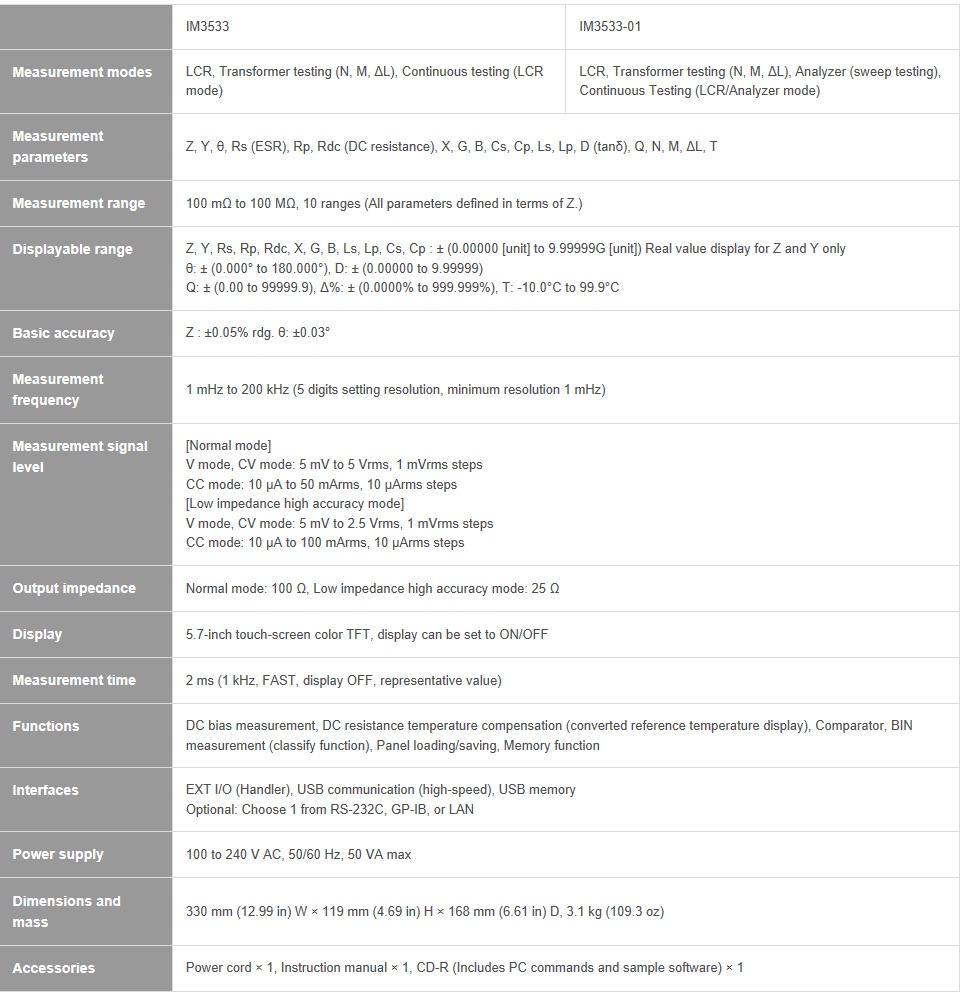

• ±0.05% accuracy with wide measurement range (DC, 1mHz to 200kHz, 5mV to 5V, 10uA to 50mA)

• Non-stop testing over mixed measurement conditions such as C-D and ESR at 10 times the speed of previous models

• Built-in low impedance high precision mode effective for testing low inductance or the ESR of aluminum electrolysis capacitance (10× the measurement speed and dramatic improvements in repeatability and stability over the previous model 3522-50)

• Dedicated modes for measuring transformer winding ratio, mutual inductance and temperature compensated DCR

• Frequency sweep testing (IM3533-01 only)

• 2m/4m cable setting in addition to the standard 0m/1m
